Steel Dump Trailers


TravAlong Heavy Duty Dump Trailers

Available in the following sizes in either Bumperhitch or Gooseneck models

Click on Images Below to view the Full Sized Version


.





82" x 10'

82" x 12'

82" x 14'

82" x 16' 90" x 20'

Inside Bed Width

82"

82"

82"

82"

90"

Inside Bed Length

120"

144"

168"

192"

240"

Inside Bed Height

24"

24"

24"

24"

36"

Torsion Axles

6K 8 bolt

7K 8 bolt

7K 8 bolt

7K 8 bolt

10K 8 bolt

Electric Brakes ALL WHEEL ALL WHEEL ALL WHEEL ALL WHEEL ALL WHEEL
Deck Height Off Ground 23" 24" 24" 24"

Tire Size

235/80R16

235/80R16

235/80R16

235/80R16 235/80R16

Tire Rating

E

E

E

E

E

Coupler

2 5/16"

2 5/16"

2 5/16"

2 5/16"



2 5/16"



Struck Capacity

5.06 Cubic Yd

6.08 Cubic Yd

7.09 Cubic Yd 8.1 Cubic Yd 17.78 Cubic Yd
Lift Capacity 14K 14K 16K 16K 16K


Standard Features

Popular Optional Features
  • 8 bolt hubs   9/16 lugs

  • 7 Gauge Formed Sides

  • 12,000# Spring Retracted Drop Leg Jack

  • Tie Rail

  • Side Board Extension Pockets (Except 20' Model)

  • 2 5/16" Adjustable Coupler

  • 6' ramps (7' HD Ramp For 20' Model)

  • Safety Chains and Hooks

  • Steel Fenders

  • 4 Welded D Rings in Bed

  • Lockable Control Box

  • DuPont Paint (click here to see available colors)

  • Single Cylinder with Scissors Lift

  • Power Up/Power Down Hydraulics

  • 7 Pole Plug

  • Break Away Brake Kit

  • Fusible Battery Charge Wire

  • Remote Control Hydraulics with 20' Cord

  • All Wheel Electric Brakes

  • LED Lights

  • Spray on Gravel Guard

  • Spare Rim

  • 50/50 Spreader Gate with Load Jacks





  • Electric Over Hydraulic Brakes

  • Hydraulic Surge Brakes

  • 48" Heavy Duty Weld On Sides

  • 2' Tall Bolt on Expanded Metal Side Extensions

  • 2' Tall Bolt on Solid Metal Side Extensions

  • 8" Wide Wooden Side Board Extensions on 3 sides

  • Rumber 2"x 8" Side Board Extensions on 3 sides

  • Additional Pair of D Rings

  • Pintle Eye Hitch

  • 18,000# Lift on 14' Models

  • Fork Pockets with Chain Restraint

  • Roll Tarp Kit

  • Lay Over Tarp

  • Remote Control

  • Breakaway Battery Tester/Maintainer

  • 12v Battery Maintainer/Recharger

  • 5 H.P. Honda Gas Eng. Hyd. Pump/Tank & Valve (recoil start)

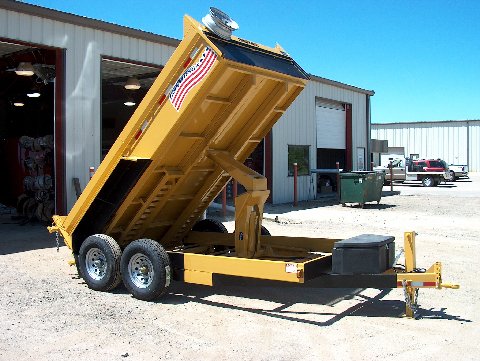

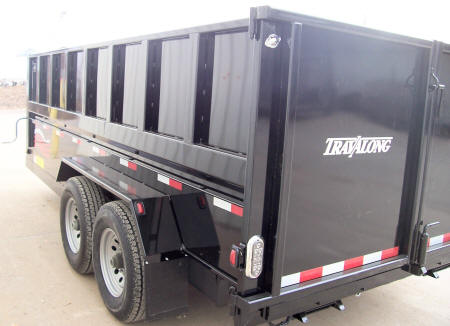

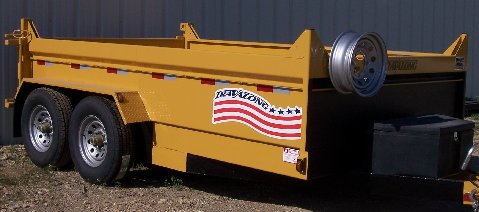

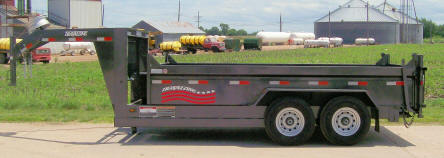

The Dump Trailers shown below are pictured with the 2' Solid Metal Side Extension Optional Feature.

.
