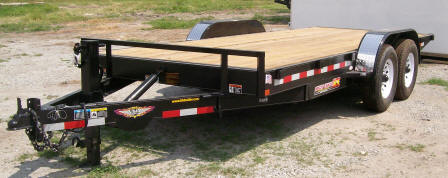

The Speedloader© Tandem Tiltbed Trailer

The H&H® Speedloader© Tandem Tiltbed Trailer is crafted in a manual version as well as an electric.  The manual version works by a powerful hydraulic ram jack that is operated by hand to tilt the bed up which works much faster than handling ramps.  Slowly releasing the pressure valve on the jack to lower the bed down at the rate you want.  The electric model simply involves Pressing the Up Button to Raise the Front of the Deck and Drop the Tail on the Ground!  Pressing the Down Button to Lower the Front of the Deck Down and Go!  It really is that simple!  Let us work one on one with you to find the trailer specific to your needs.  Request a quote today!

Click on any of the images in the gallery below to view the larger version.

Speedloader© Tandem Tiltbed Trailers are Standard with the following features

• Sizes Available: 8.5'x18', 8.5'x20', 8.5'x22', 8.5'x24'

• Deck Width:  82”

• 7,000# GVWR is standard with ST205-15C rated tires on 6-bolt white wheels with 1 electric brakes axle

• Full Structural Channel Steel Tongue, Frame, and Crossmembers Featuring Fully Conjoined Welds-Industry Exclusive 10-year warranty!!!

• #1 Grade ACQ Treated 2x10 Wood Flooring with a Lifetime Limited Warranty Against Rot.**Industry Exclusive**

• At least 10 standard heavy gauge stake pockets are fitted to each trailer.  The longer the trailer the more pockets!

• 7,000# rated drop leg jack for more clearance and low 8.5" standard fender height are included.

• LED Lighting

• Floor Pressed into Place to Eliminate Gaps and Mounted with 1/4" Type F Trailer Decking Screws

• Front and Rear End Caps Bolted into Place to Eliminate Board Cupping

• 6.7lb/ft Channel Steel Frame - Strongest Standard Frame in the Industry!

• Full wrap tongue extended to front suspension mount. Nothing stronger!

• Critical tongue areas are braced and gussets are welded into place.

• PR4B series steel leaf spring suspension mounted to equalized JIG fitted suspension system.

• 2 5/16” Ball Posi-Lock Coupler rated for 14,000#

• Dual Extra Long Safety Chains with 'S' Hooks.

• Custom built 10" wide tandem fenders with structural Y braces inside.  Strong enough to walk on!

• Rock guard on front of fenders to help against chipping.

• Low profile headache rack with four supports on front of the deck

• Full lighting includes combination stop, turn, and taillights.

• Automotive grade undercoating on frame, crossmembers, and inner fenders.

• The industry's toughest design standards.

Optional Features for Speedloader© Tandem Tiltbed Trailers
